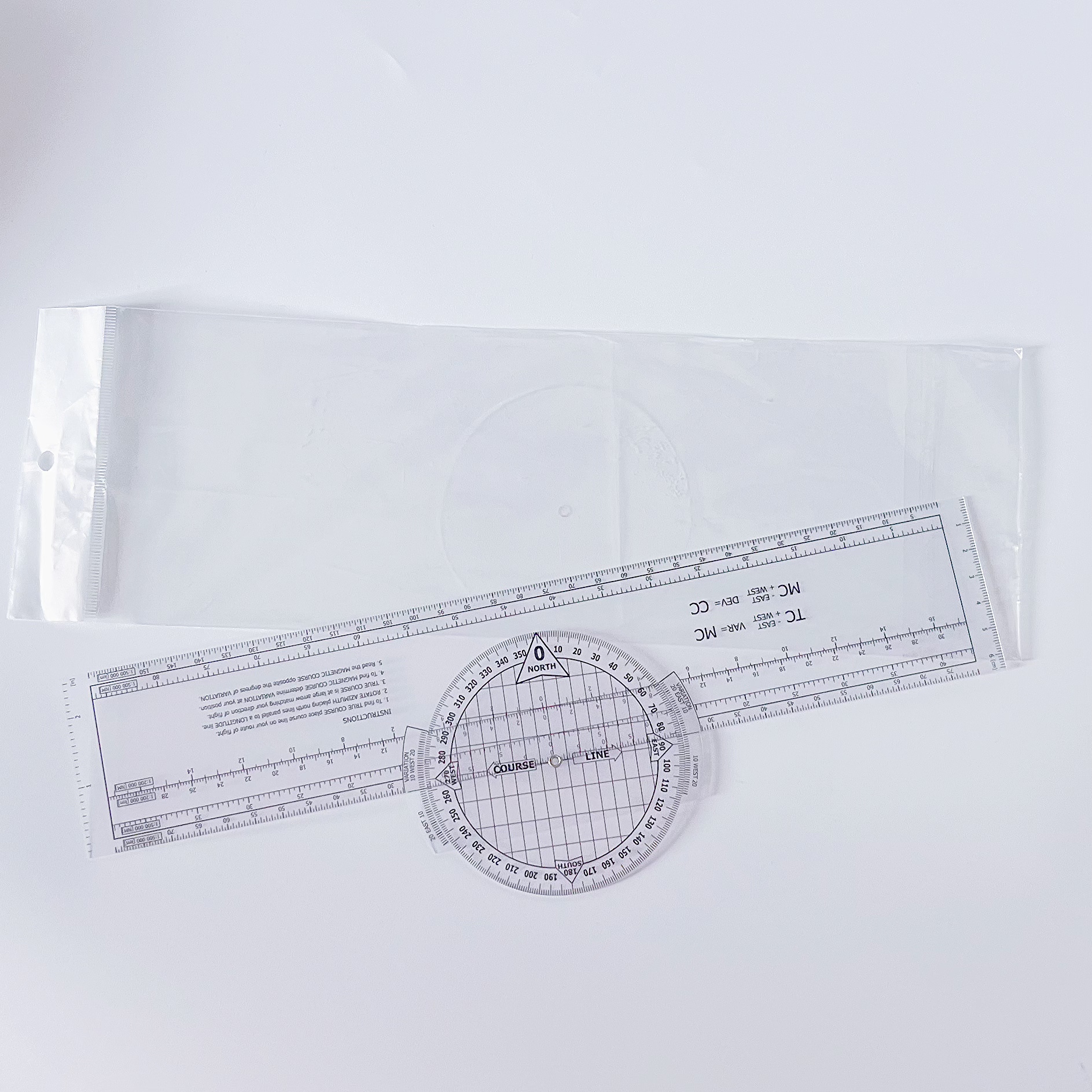

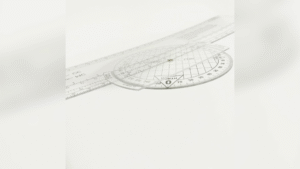

The Navigation plotter is made from flexible plastic material. 1.2mm thickness with sandwich line printing.
Instructions:
- To find TRUE COURSE place course line on your route of flight.
- ROTATE AZIMUTH placing north lines parallel to a LONGITUDE line.
- TRUE COURSE is at large arrow matching your direction of flight.
- To find MAGNETIC COURSE determine VARIATION at your position.
- Read the MAGNETIC COURSE opposite the degrees of VARIATION.
